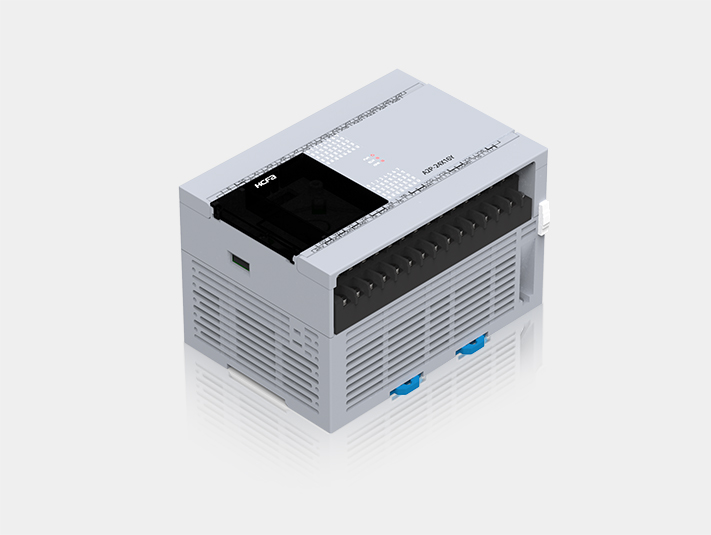

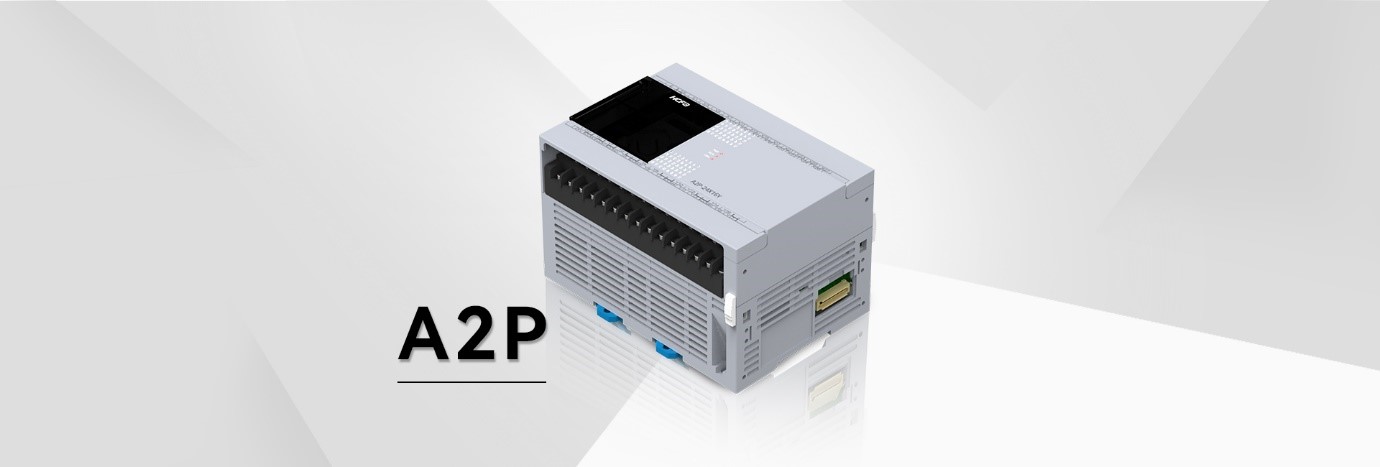

A2P Series

Product Series: A series general controller

Module Type: CPU Unit

Operation speed：LD 20ns

Control points：256点2560 points

Program capacity ：8k steps

Support high-speed pulse output：2 axis 100kHz high-speed pulse output

Hardware interface：RS422/RS485

Transistor output：HCA2P-14X10YT-A、HCA2P-14X10YT-D、HCA2P-24X16YT-A、HCA2P-24X16YT-D、HCA2P-36X24YT-A、HCA2P-36X24YT-D

Relay output：HCA2P-14X10YR-A、HCA2P-14X10YR-D、HCA2P-24X16YR-A、HCA2P-24X16YR-D、HCA2P-36X24YR-A、HCA2P-36X24YR-D

Product Features

Basic performance

8k-step program capacity, memory box with program transfer function can be installed (max. 8k steps)

Basic instruction operation speed: 0.5~0.7μs/instructions, application instruction operation speed: 3.7μ~100μs/instructions

Supports high-speed pulse input and output

Communication compatibility

Support standard Modbus RTU protocol

Support RS485/RS422 interface

Support Modbus Master-Slave mode

High ease of use

Support BD board to expand a small number of input and output points or analog input and output

Motion Control

Support 2-axis motion

256 control points
