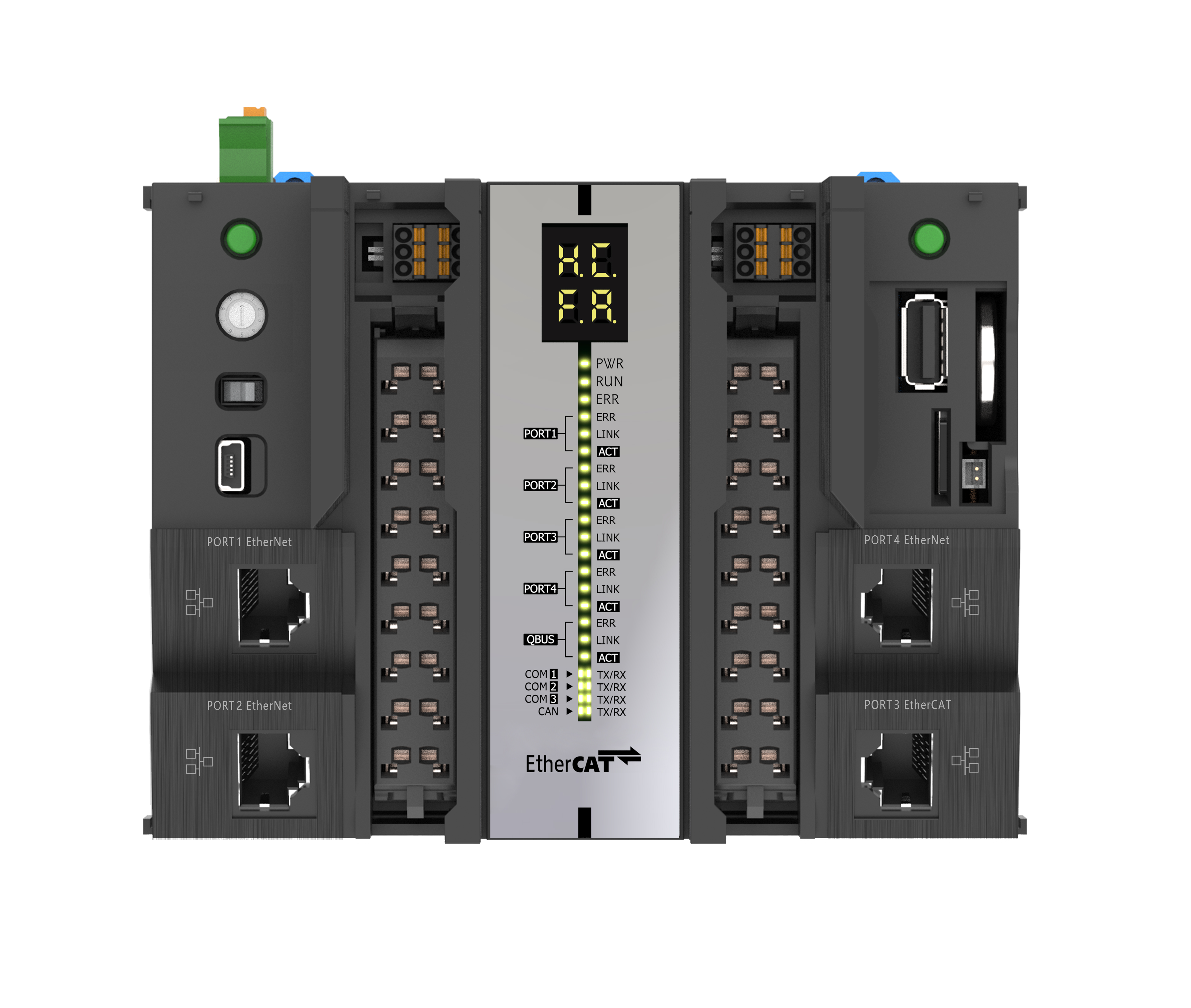

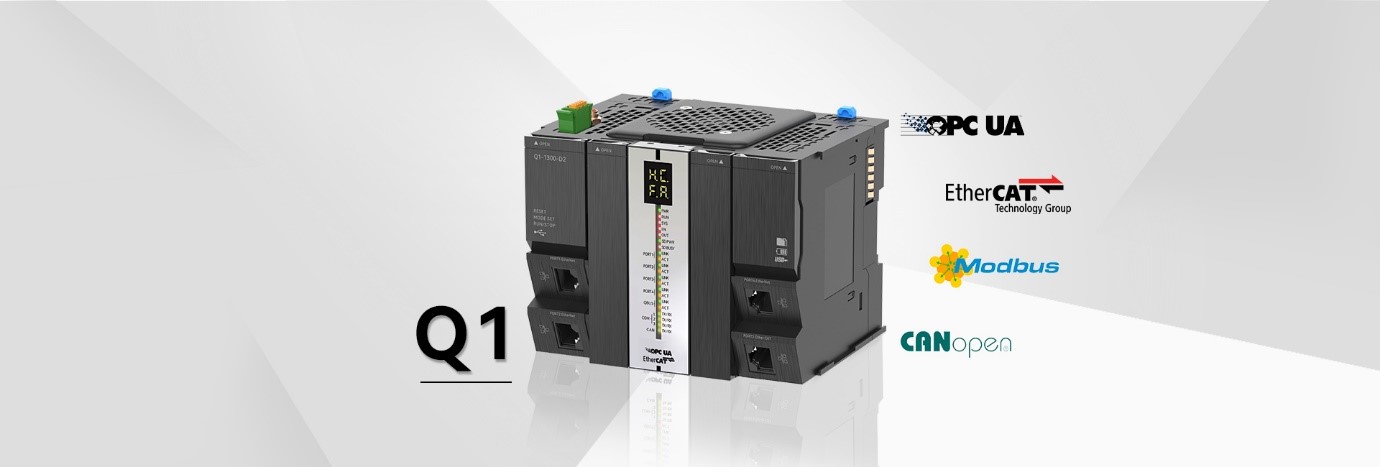

Q1 Series

Q1 Series

Product Series: Standard bus type motion controller

Module Type: CPU Units

Processor: A7*2, 1.2GHz, 1G DDR+2G EMMCa

Support Protocols: EtherCAT, CANOpen, Modbus TCP/IP, OPC/UA etc.

Product Features

High speed and high configuration

Built-in 2-core processor + FPGA architecture

EMMC+SD+USB3.0+DDR3 accelerator

Built-in 32 high-speed IO (16IN/16OUT)

Communication compatibility

Supports standard EtherCAT/CANOpen/Modbus TCP/Modbus RTU protocols

Complete communication interface

Ethernet Gps*2/EtherCAT interface/CAN and 3-way serial port built-in (RS485/RS232) WiFi and other options

Support Modbus Master-Slave mode

High ease of use

Standardized programming development: IEC61131-3 specification in 6 programming languages, using CODESYS platform

Flexible system configuration, up to 65535 slave stations

USB driver-free

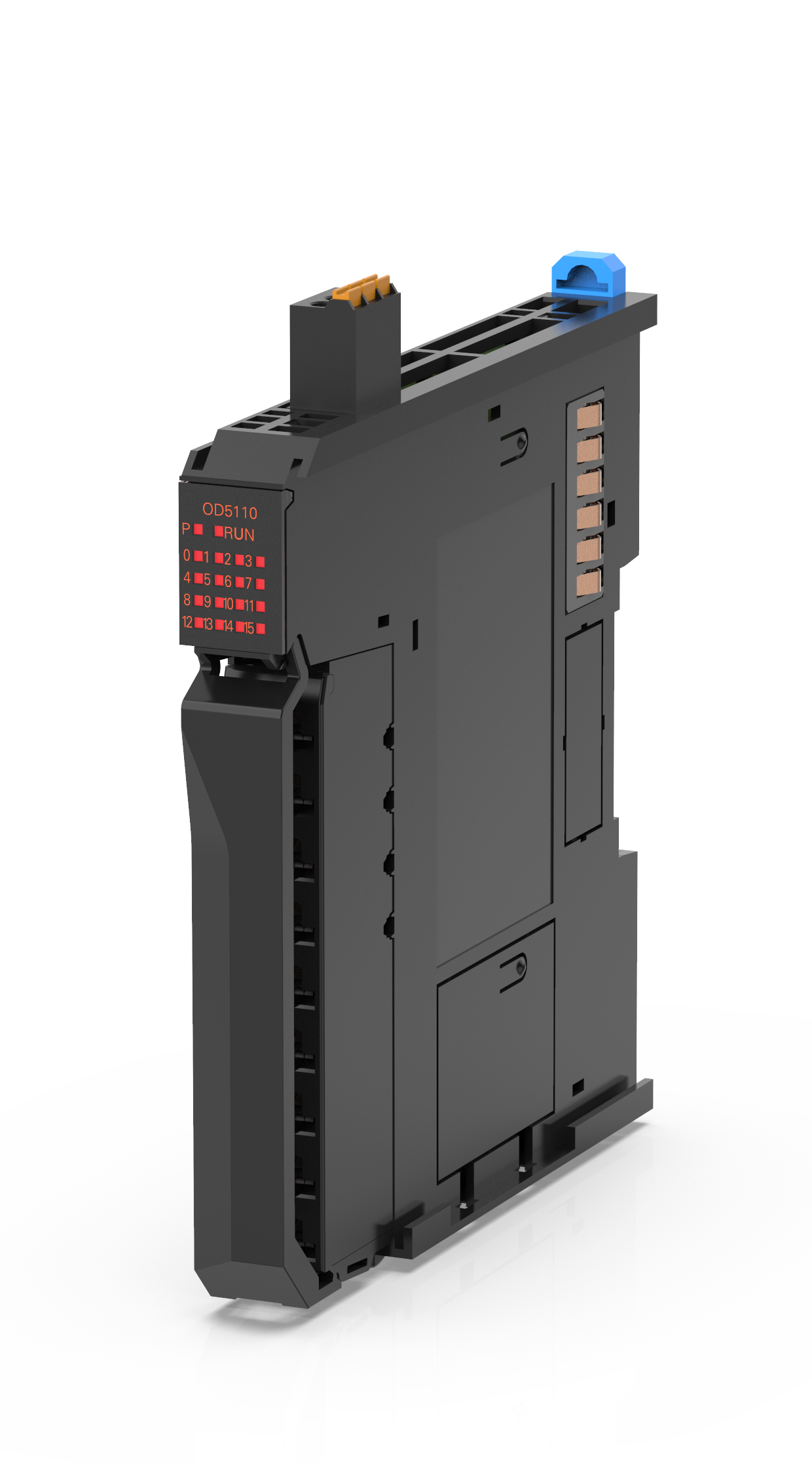

12mm ultra-narrow direct pull module & push-in terminal

Motion Control

PLC OPEN-based standard motion control: linear/arc/spiral interpolation/electronic cam & flying shear & chasing shear/CNCG code control/Robot control

Ultra-short synchronization cycle: command execution can reach 1ns; 1ms with 8 axes, 2ms with 16 axes
